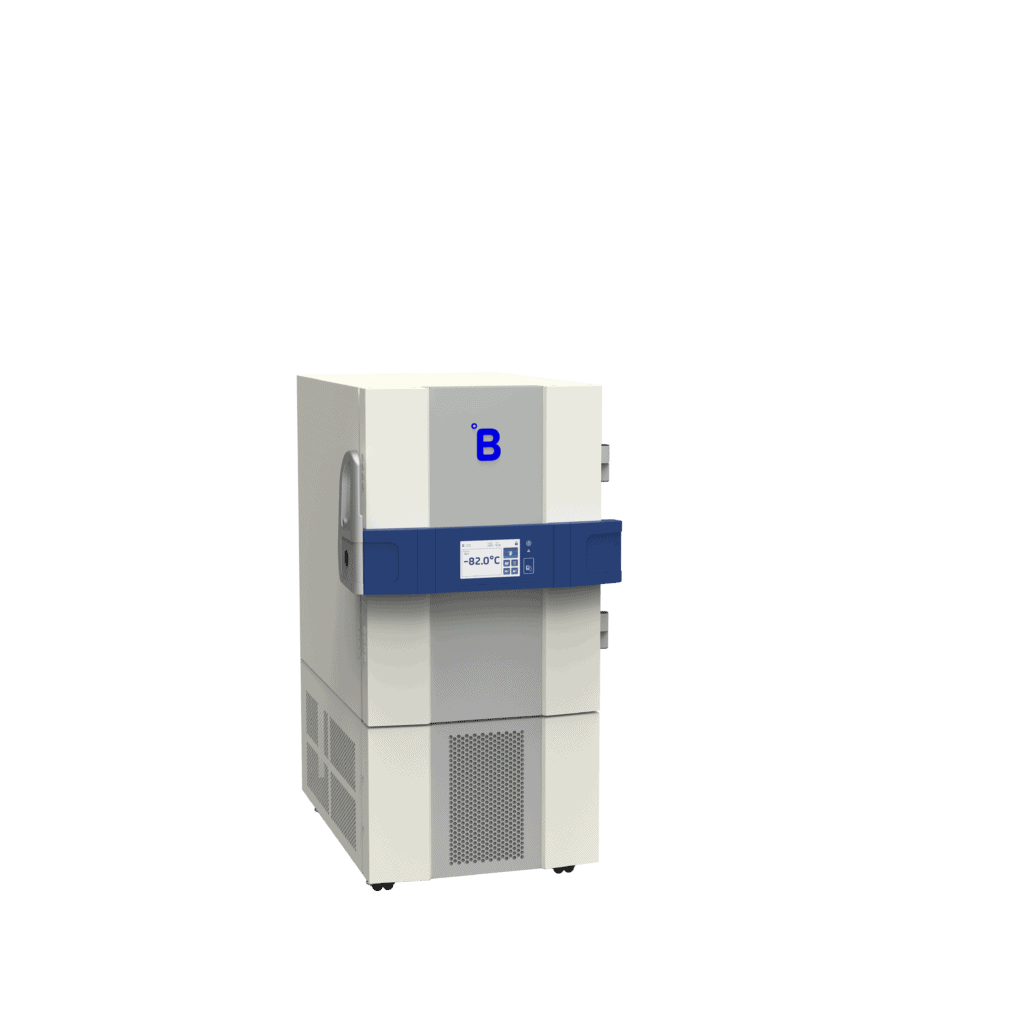

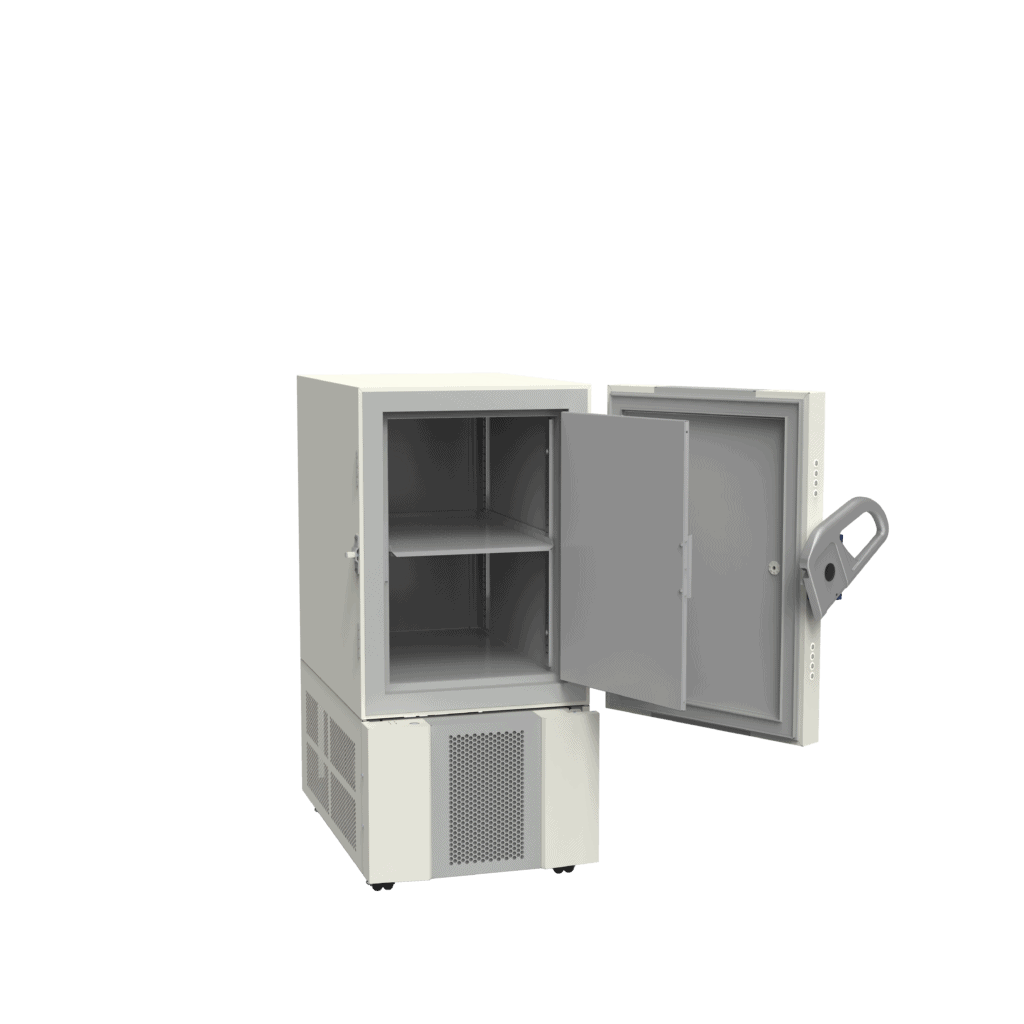

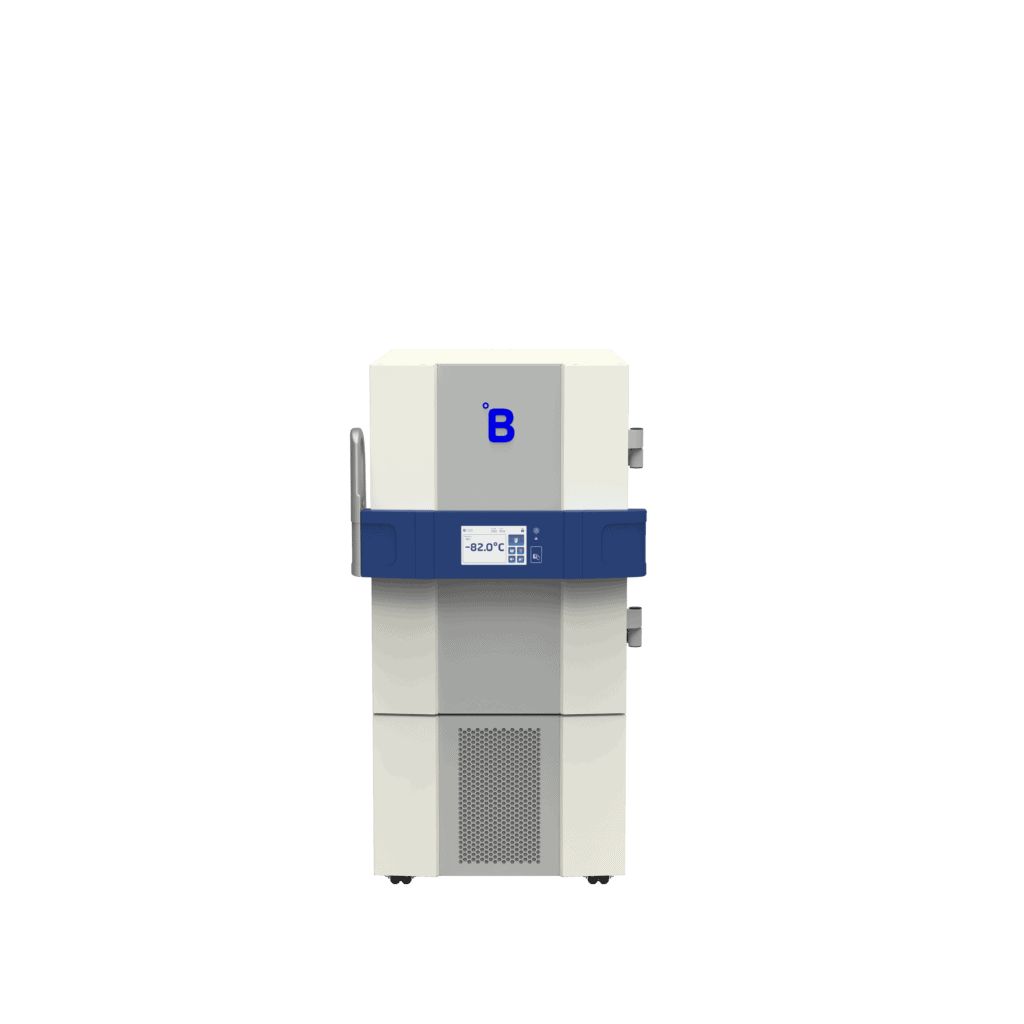

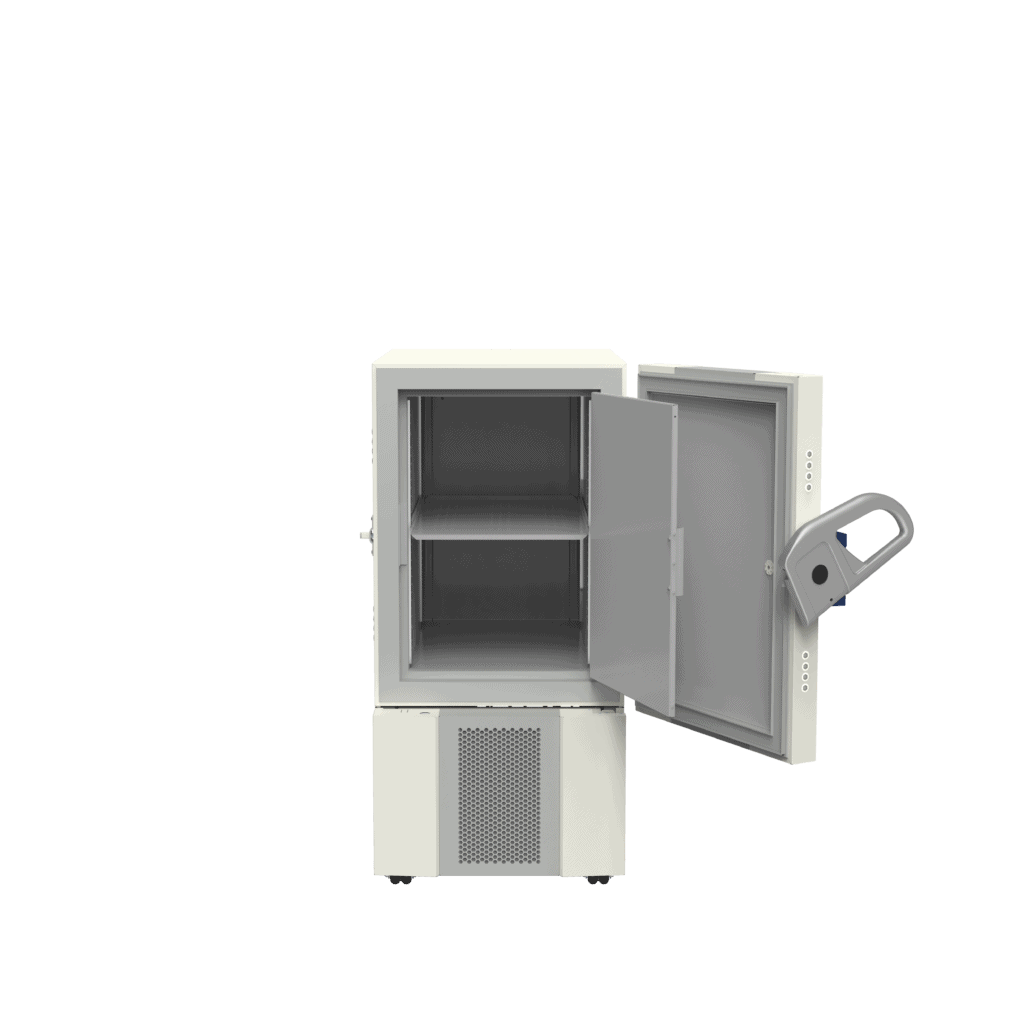

Ultra-Low Freezer U201

ULTRA-LOW FREEZER U201

1. Ultra-Low Freezer with 232 L | 8.19 cu ft gross volume.
2. Set Temperature: - 86°C
3. Climate class (ambient temperature range): +10°C to +43°C
4. Alarm limits: - 87°C | - 77°C
5. External dimensions (HxWxD): 1293 x 699 x 1039 mm | 50.91 x 27.52 x 40.91 in
6. Refrigerant Type: Natural R290 / R170

Reliability

1. Adjustable set point from -86°C to -20°C
2. Uniform and stable temperature distribution
3. Fast temperature recovery after door opening
4. Extended holdover time in case of power failure and optional CO2 backup
5. Audio-visual alarm system with remote transmission via SMS or email
6. Coalescing oil separator reducing the oil blockage problems and risk of compressor failure
7. °B Connected universal software for remote monitoring, reporting (in compliance with FDA 21 CFR Part 11), and long-term archiving

Efficiency

1. Natural refrigerants with high cooling efficiency in conformity with US SNAP and EU F-Gas regulations
2. Insulated inner doors, sealed gaskets, enhanced frame for minimized cold air loss and frost build-up
3. High-quality stainless steel cabinets with antibacterial coating and injected with thin polyurethane foam providing high thermal insulation and storage capacity

Certification

EMC standards: IEC 61326-1 Safety standards: IEC 61010-1 / IEC 61010-2-011 Medical Device Regulation: (EU) 2017/745: Class I / (EU) 2017/745: Class IIa GMP-clean room classification: class ISO5/EC GMP A ISO 13485, ISO 9001, ISO 14001, CE 0123

Convenience

1. 7” touchscreen with temperature display easily accessible in the bar
2. Password protected/NFC card based door locking mechanism
3. USB port and SD card slot for easy export of data
4. Antibacterial coating for easy hygiene control
5. Modular interior equipment
6. Easy access to all levels
7. High-quality stainless steel and other materials for an extended life span
8. The innovative door lock system, designed for ease of use and security, features a door handle that upon the closing of the door will automatically slide into the closing latch of the cabinet and, after 30 seconds, will also lock itself automatically
