A440 & E528 High Efficiency Cryogenic Freezer

The A440 High Efficiency Cryogenic Freezer & E528 High Efficiency Cryogenic Freezer, Extended Height provide simple, secure -190°C LN2 vapor storage, with a sample capacity of up to 10-30% higher than leading brands on the market

  1. Up to 52,800 2ml vial capacity
  2. Up to 3,704 25ml cassettes
  3. 150l LN2 capacity (vapor storage)

Overview

The A440 High Efficiency Cryogenic Freezer & E528 High Efficiency Cryogenic Freezer, Extended Height are ideally suitable for laboratory, repository and clinical use, fit for active, archive or quarantine collections. Offering the highest storage density of all freezers on the market (10% to 30% more than leading freezer brands), it comes with the lowest LN2 usage per sample.

Key Features

Simple Controls & Connectivity

  1. Touchscreen controller with WiFi, LAN, text and email alerts automatically maintains the freezer conditions
  2. Critical data is recorded and can be pushed to the cloud, emailed or saved to a USB flash drive
  3. Built-in connection to an optional cloud-based monitoring portal enables remote monitoring of freezers and predictive maintenance
  4. Supports independent temperature and level monitoring for redundant peace of mind
  1. Highest storage density with 10-30% more samples than other leading freezer brands
  2. High capacity rack design to reduce innocent sample exposure and increase overall capacity
  1. Cryogenic LED and automatic fog clear enhance visibility and sample access
  2. Optimized designs minimize liftover height and balance capacity and usability with sufficient workspace to maintain the cold chain

Specifications

Parameter A440 Cryo Freezer E528 Cryo Freezer, Extended Height
Vial capacity* (vials | boxes | racks) Slim vertical racks (5 boxes/rack): 44,000 | 440 | 88 Slim vertical racks (6 boxes/rack): 26,400 | 264 | 44
Square racks (13 boxes/rack): 15,600 | 156 | 12 Square racks (13 boxes/rack): 18,000 | 180 | 15
Cassette capacity(cassettes | frames | cassettes/frame) 25ml cassettes: 1,708 | 244 | 7 25ml cassettes: 1,952 | 244 | 8
50ml cassettes: 952 | 136 | 7 50ml cassettes: 1,088 | 136 | 8
250ml cassettes: 400 | 100 | 4 250ml cassettes: 500 | 100 | 5
500ml cassettes: 336 | 84 | 4 500ml cassettes: 420 | 84 | 5
Outer diameter 45in (1,143mm) 45in (1,143mm)
Overall height 59in (1,499mm)) 63in (1,600mm)
Usable height 30in (762mm) 34in (864mm)
Step height 9.5in (241mm) 9.5in (241mm) x 2
Liftover height 39.5in (1,003mm) 34in (864mm)
Neck opening 12.6in (320mm) 12.6in (320mm)
Empty weight 650lb (295kg) 710lb (322kg)
Working weight** 1,060lb (481kg) 1,180lb (535kg)

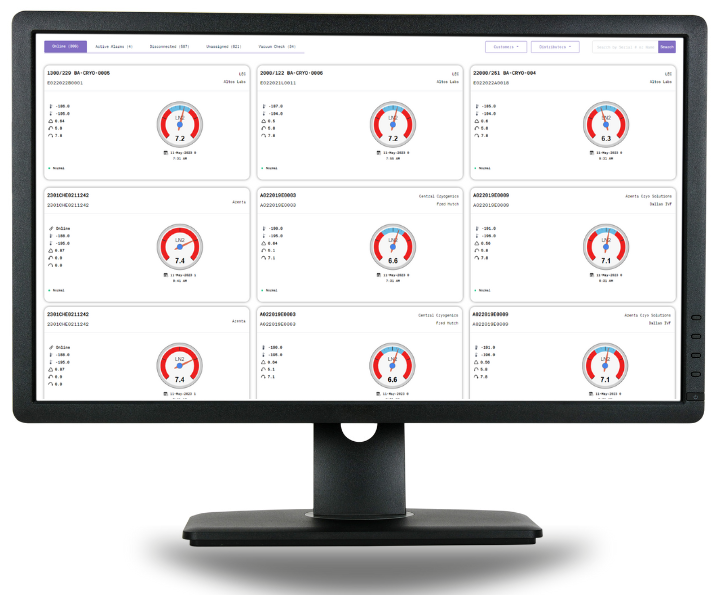

Remote Monitoring

With Azenta cryo freezers, you have the ability to remotely monitor the status of your freezers 24/7 in real time. You can log in to the Azenta cryo monitoring portal from anywhere (including via mobile) to see the dashboard, view performance metrics, or request support or service.

  1. Monitor all freezers from one interface
  2. Get text or email alert notifications if conditions change​
  3. View key parameter charts and detailed equipment temperature history​
  4. Download reports for custom date ranges​
