IMD - 2412R Modals

IMD 2415 Non-Refrigerated Centrifuge

This boasts a highly intuitive and ergonomic user interface, easy and sophisticated control, and full-function safety architecture. The centrifuge is recommended for molecular workflows of RNA/DNA extraction, cell collection, phenol extraction, simple spin-down, filter tube separation, etc

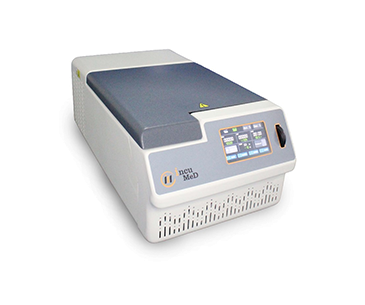

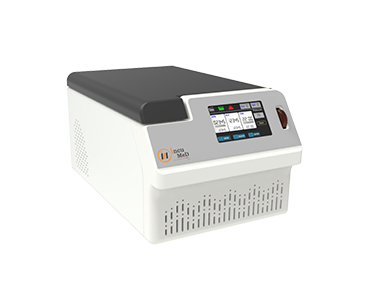

The Refrigerated Centrifuge, with a 24-vial capacity and a speed of up to 12,000 rpm, is perfectly placed to provide for all modern molecular biology applications. The Refrigerated Centrifuge features state-of-the-art cooling technology to ensure optimal energy consumption and precise Temperature accuracy with a small footprint. This boasts a highly intuitive and ergonomic user interface, easy and sophisticated control, and full-function safety architecture. The centrifuge is recommended for molecular workflows of RNA/DNA extraction, cell collection, phenol extraction, simple spin-down, filter tube separation, etc.
The Refrigerated Centrifuge, with a 24-vial capacity and a speed of up to 15,000 rpm, is perfectly placed to provide for all modern molecular biology applications. The Refrigerated Centrifuge features state-of-the-art cooling technology to ensure optimal energy consumption and precise Temperature accuracy with a small footprint. This boasts a highly intuitive and ergonomic user interface, easy and sophisticated control, and full-function safety architecture. The centrifuge is recommended for molecular workflows of RNA/DNA extraction, cell collection, phenol extraction, simple spin-down, filter tube separation, etc.

Features

  1. Capacity: 24 x 1.5/2ml, 4 x PCR strips, 8 x 5ml vials
  2. Speed up to 12,000 rpm
  3. Temperature ranges from -10°C to 40°C
  4. Super-fast pre-cooling
  5. Compact design with a small (Dimensions: 600mm x 330mm x 245mm) footprint that can fit within your valuable workspace
  6. Quiet operation – < 65dB
  7. Sharp contrast display so that you can view your run parameters and progress with ease
  8. Intuitive user interface through a touch screen and rotary knob that allow for easy setting of time/rpm/rcf
  9. Automatic rpm/rcf conversion
  10. Easy to access Shortspin option
  11. Gentle lids that open and close with minimal effort
  12. Aerosol tight rotors for safe centrifugation of hazardous samples

Specifications

Mains/power connection 220V, 50 Hz – 60 Hz
Power consumption 220v, 550 Watts
Dimensions ( will change as per design )
Length: 585 mm
Height: 245 mm
Weight ( without rotor ): 35 Kg
User Interface ( customizable ) Touch Screen with rotary encoder
Set temperature -10 to 35
Environment For indoor use only
Operating temperature 2 ℃ – 40 ℃
Relative humidity 10 % – 80 %, non condensing
Run time 10 s – 99:59 mins
Rotational speed 1000 rpm – 12500 rpm
Max. Relative Centrifugal Force 21300 x g
Maximum load Fixed-angle rotor: 24 x 2ml vials
Maximum kinetic energy 4.136 kJ
