Plasma Contact Shock Freezers Modals

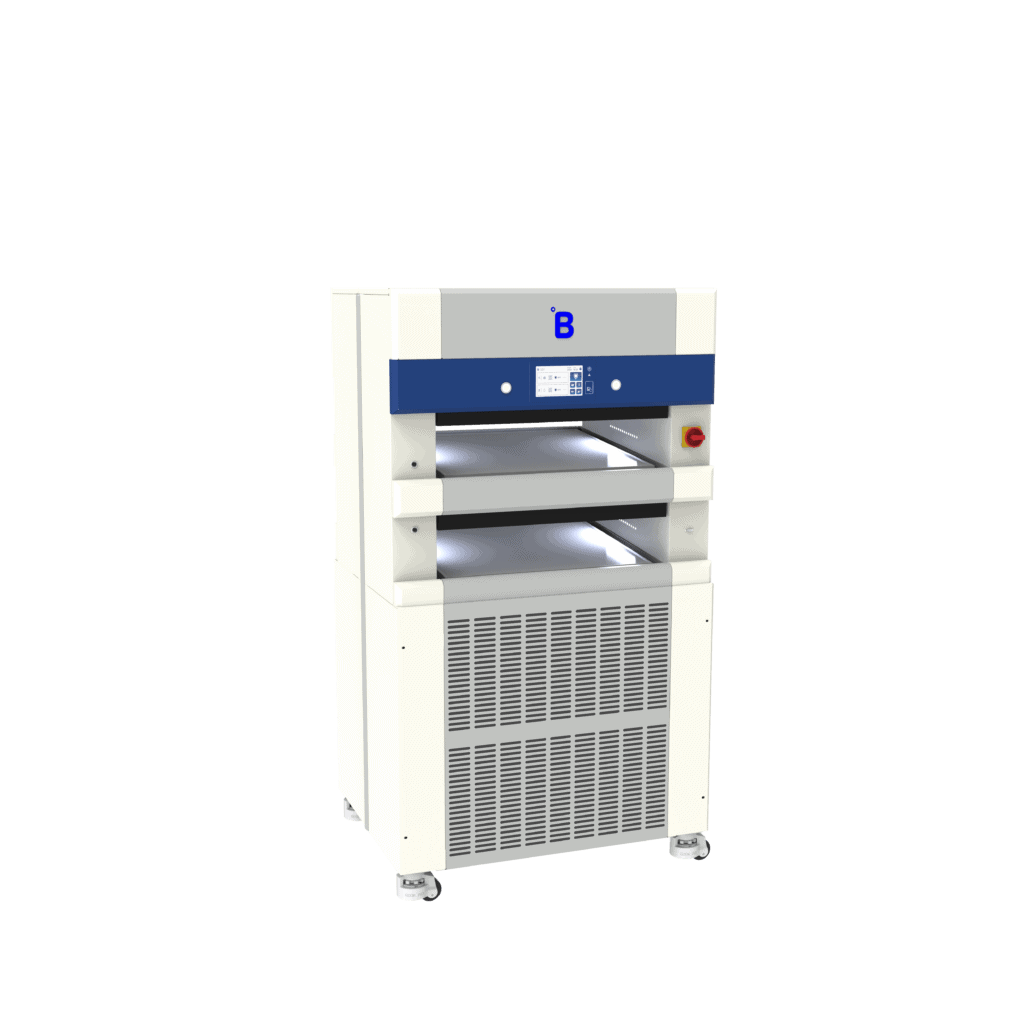

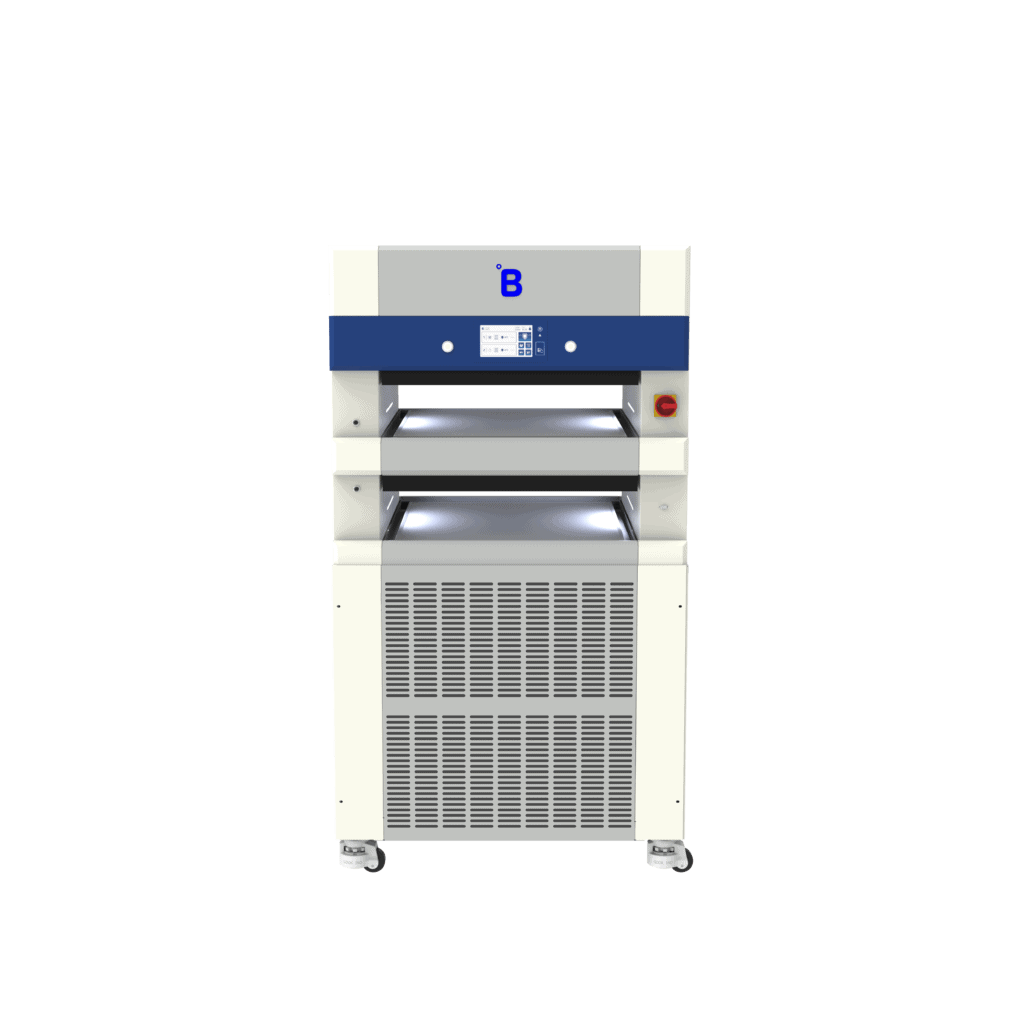

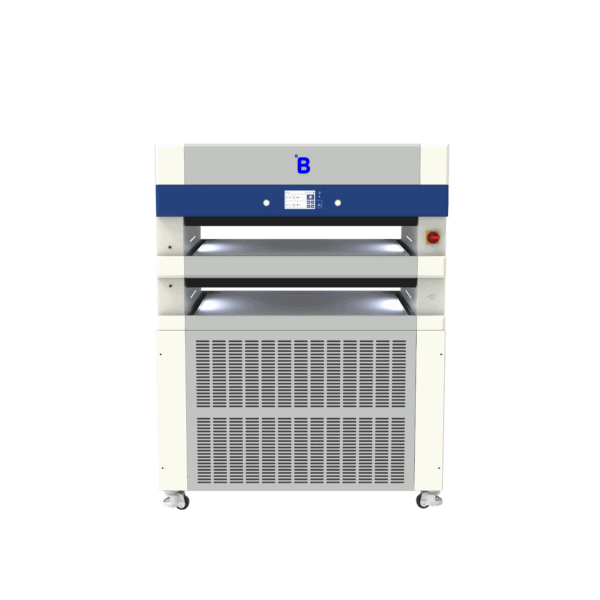

Plasma Contact Shock Freezer Csf61 l – Air-Cooled

  1. Plasma Contact Shock Freezer
  2. Set Temperature: - 50°C
  3. Climate class (ambient temperature range): +10°C to +32°C
  4. External dimensions (HxWxD): 1910 x 1080 x 830 mm | 75.20 x 42.52 x 32.68 in
  5. Refrigerant Type: R449a
  1. Plasma Contact Shock Freezer
  2. Set Temperature: - 50°C
  3. Climate class (ambient temperature range): +10°C to +32°C
  4. External dimensions (HxWxD): 1910 x 1080 x 830 mm | 75.20 x 42.52 x 32.68 in
  5. Refrigerant Type: R449a
    1. Plasma Contact Shock Freezer
    2. Set Temperature: - 50°C
    3. Climate class (ambient temperature range): +10°C to +32°C
    4. External dimensions (HxWxD): 1910 x 1080 x 830 mm | 75.20 x 42.52 x 32.68 in
    5. Refrigerant Type: R449a

    1. Plasma Contact Shock Freezer
    2. Set Temperature: - 50°C
    3. Climate class (ambient temperature range): +10°C to +32°C
    4. External dimensions (HxWxD): 1910 x 1500 x 830 mm | 75.20 x 59.06 x 32.68 in
    5. Refrigerant Type: R449a

    1. Plasma Contact Shock Freezer
    2. Set Temperature: - 50°C
    3. Climate class (ambient temperature range): +10°C to +32°C
    4. External dimensions (HxWxD): 1910 x 1500 x 830 mm | 75.20 x 59.06 x 32.68 in
    5. Refrigerant Type: R449a

Innovative Freezing Technology

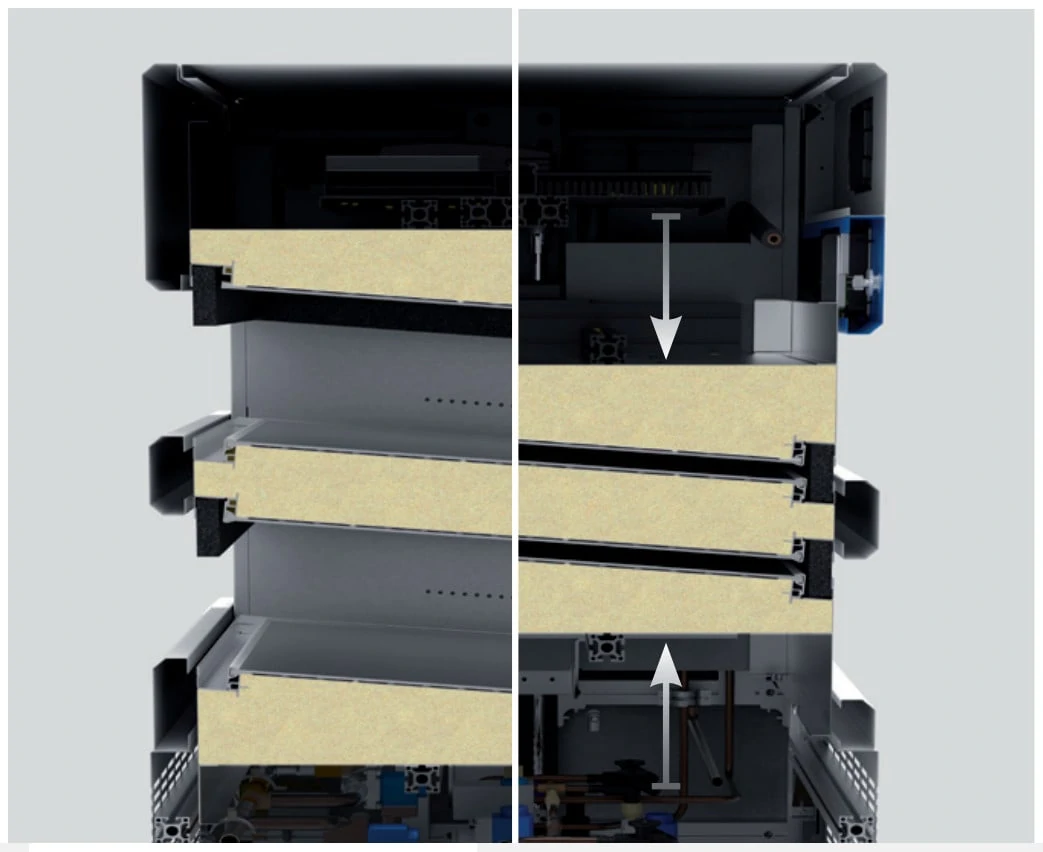

  1. Two cooling plates inclined at 5° for a superfast freezing cycle
  2. Two levels that operate independently, allowing simultaneous freezing and defrosting as necessary​
  3. Linear actuators that self-adjust to apply the proper force against your plasma bags​
  4. No exposure to extremely low temperatures, avoiding the crazing of the bags
  5. Homogeneous cooling of bags despite the presence of air bubbles or uneven filling

High-Performance Cooling System

  1. Dual-stage compressors
  2. Multiple injection valves​
  3. Inclined freezing plates
  4. Eco mode
  5. Low environmental impact refrigerant

Integrated Monitoring Solution For Complete Traceability

  1. °B Connected universal software for remote monitoring, recording, and long-term archiving
  2. Electronic reports through °B Connected compliant with FDA 21 CFR Part 11​

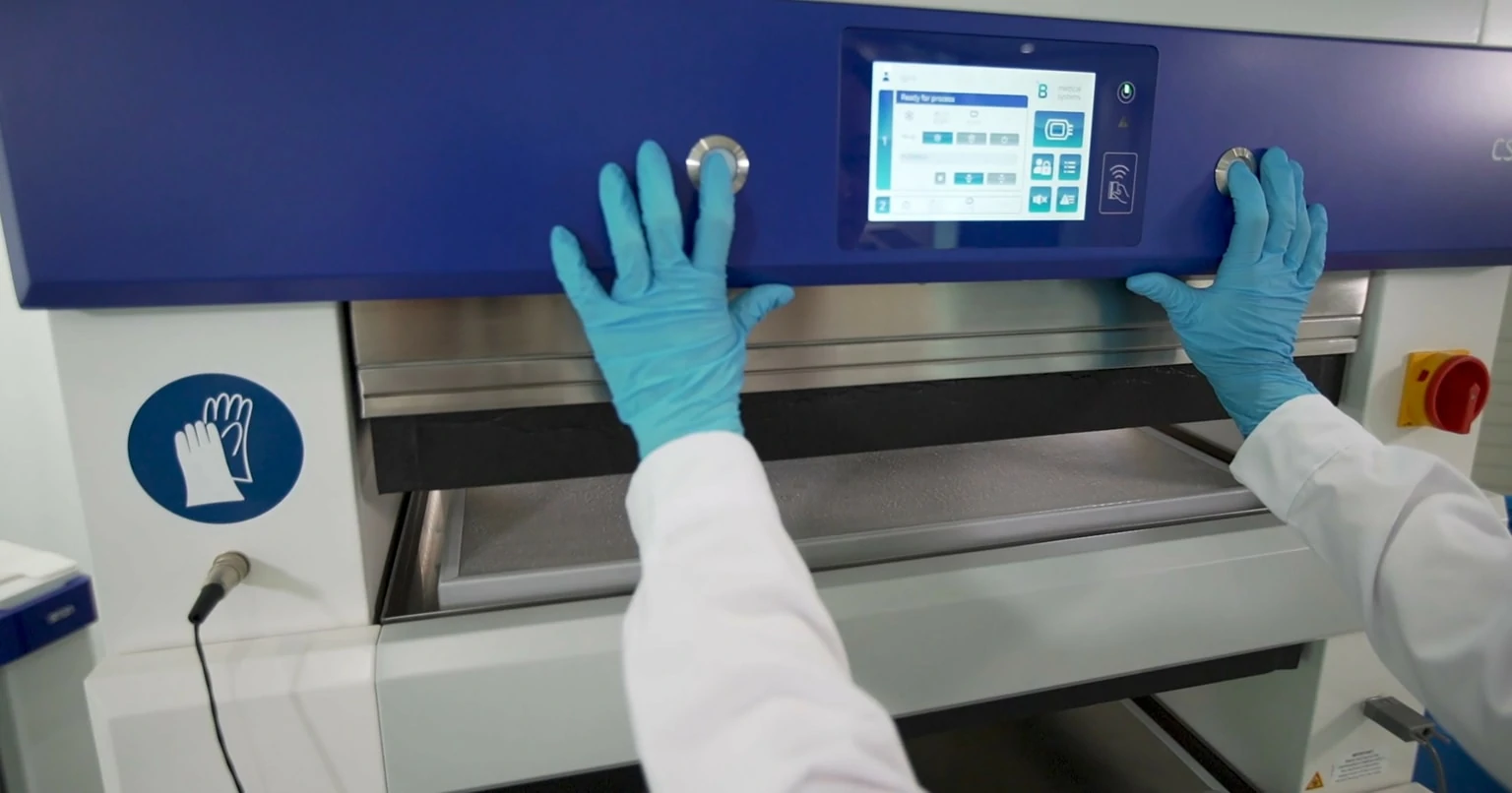

  3. 7” color touchscreen display at eye level with access to all functions
  4. Bar code scanner
  5. Batch management
  6. Advanced audio-visual alarm system with remote transmission
  7. USB port and SD card slot for easy export of data
