Solar Vaccine Refrigerators & Freezers

  • Home
  • Solar Vaccine Refrigerators & Freezers

Solar Vaccine Refrigerators & Freezers

Gallery Image

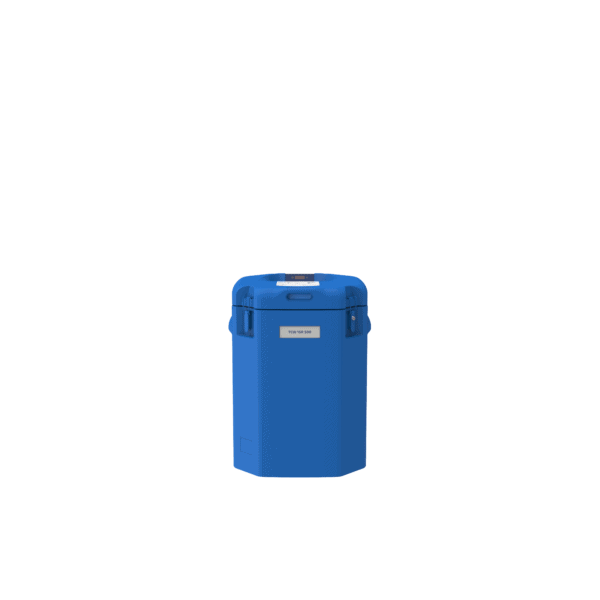

Solar Direct Drive Vaccine Refrigerator TCW15RSDD

Gallery Image

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer TCW15SDD

Gallery Image

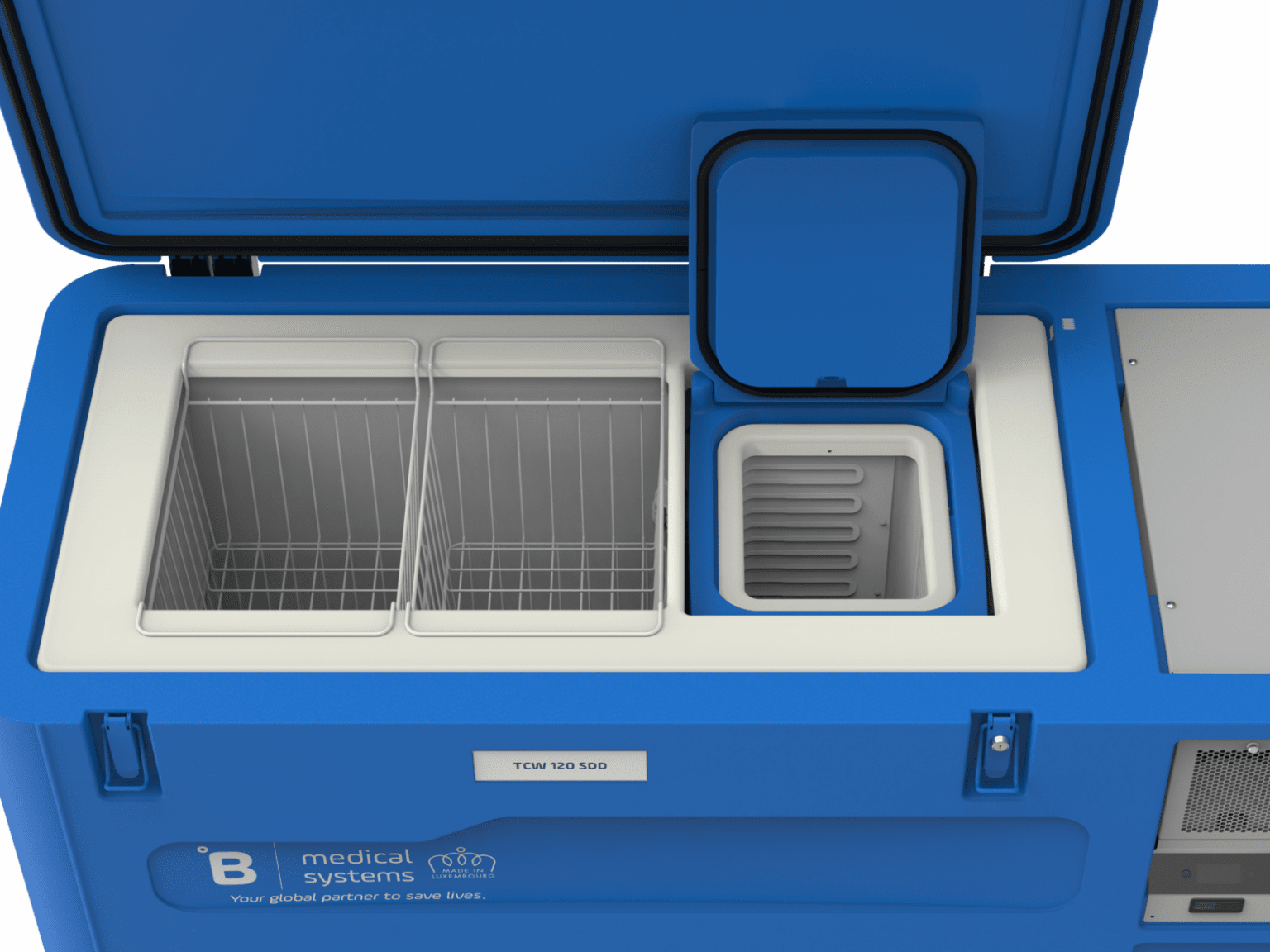

Solar Direct Drive Vaccine Refrigerator / Ice-pack Freezer TCW120SDD

Gallery Image

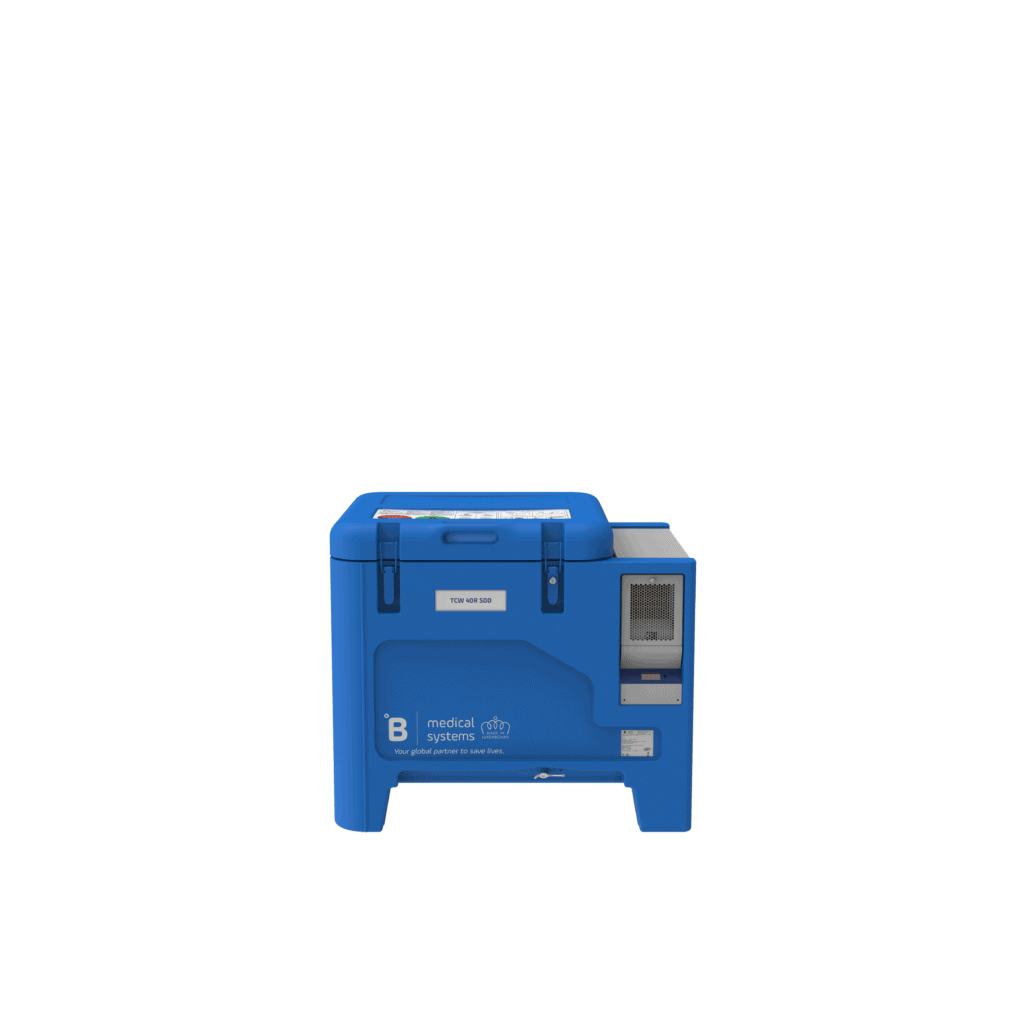

Solar Direct Drive Vaccine Refrigerator TCW40RSDD

Gallery Image

Solar Direct Drive Vaccine Refrigerator TCW80SDD

Gallery Image

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer TCW40SDD

Gallery Image

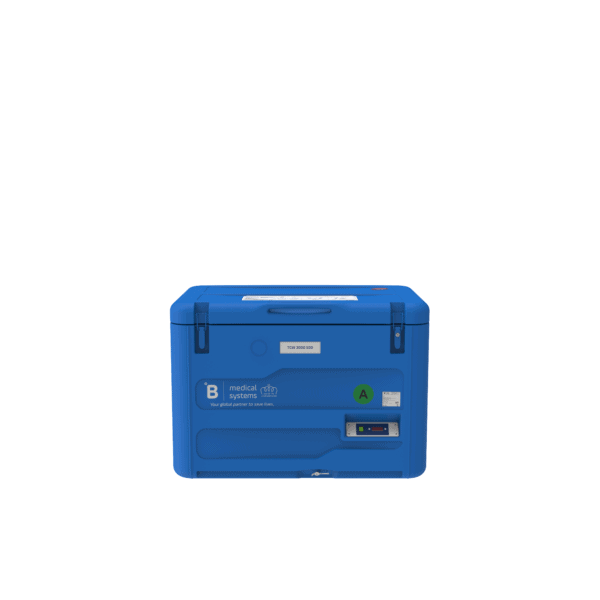

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer TCW2000SDD

Gallery Image

Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer TCW2043SDD

Gallery Image

Solar Direct Drive Vaccine Refrigerator TCW3000SDD

Gallery Image

Solar Direct Drive Vaccine Refrigerator TCW4000SDD

Gallery Image

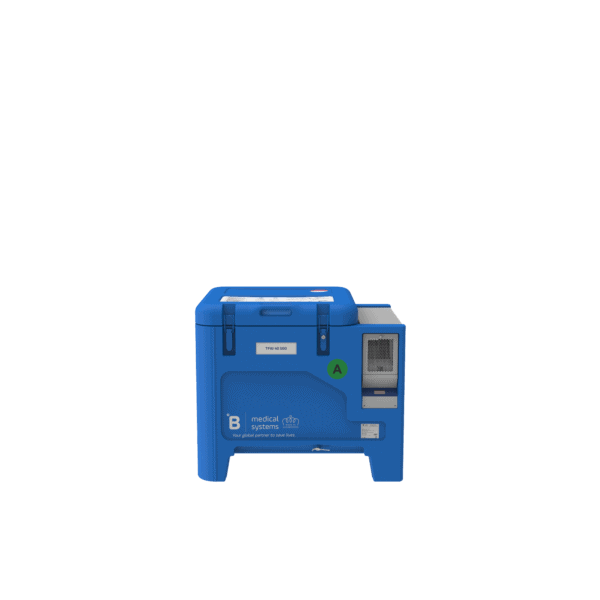

Solar Direct Drive Icepack Freezer TFW40SDD

Gallery Image

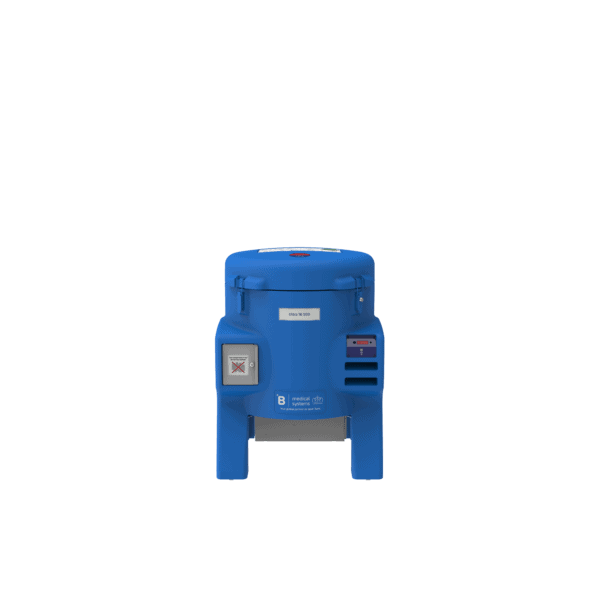

Solar Direct Drive Vaccine Refrigerator Ultra16SDD


Solar Vaccine Refrigerators & Freezers Modals

Solar Direct Drive Vaccine Refrigerator TCW15RSDD

  1. Solar Direct Drive Vaccine Refrigerator with 26.5 L | 0.94 cu ft gross volume.
  2. Set Temperature: +5°C
  3. Vaccine storage capacity: 16 L
  4. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/067
  5. Freeze protection: Grade A
  6. Climate class (ambient temperature range): Hot zone (+43°C)
  7. Energy source: Solar; DC
  1. Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer with 26.5 L | 0.94 cu ft gross volume.
  2. Vaccine storage capacity: 16 L
  3. Ice-pack storage (at 0.6 L): 4
  4. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/077
  5. Freeze protection: Grade A
  6. Climate class (ambient temperature range): Hot zone (+43°C)
  7. Energy source: Solar; DC
    1. Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer with 153L (refrigerator) | 28L (freezer) gross volume.
    2. Set Temperature: +5°C (Refrigerator) | -20°C (Freezer)
    3. Vaccine storage capacity: 120 L
    4. Certifications: EU MDR Class I | IEC 61000-3-2 / 61000-3-3 | WHO PQS 003/124
    5. Freeze protection: Grade A
    6. Energy source: Solar

    1. Solar Direct Drive Vaccine Refrigerator with 46.6 L | 1.65 cu ft gross volume.
    2. Set Temperature: +5°C
    3. Vaccine storage capacity: 36 L
    4. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/068
    5. Freeze protection: Grade A
    6. Climate class (ambient temperature range): Hot zone (+43°C)
    7. Energy source: Solar; DC

    1. Solar Direct Drive Vaccine Refrigerator with 82.5 L | 2.91 cu ft gross volume.
    2. Set Temperature: +5°C
    3. Vaccine storage capacity: 80.5 L
    4. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS 003/121
    5. Freeze protection: Grade A
    6. Climate class (ambient temperature range): Hot zone (+43°C)
    7. Energy source: Solar; DC

    1. Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer with 46.6 L | 1.65 cu ft gross volume.
    2. Set Temperature: +5°C
    3. Vaccine storage capacity: 36 L
    4. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/042
    5. Freeze protection: Grade A
    6. Climate class (ambient temperature range): Hot zone (+43°C)
    7. Energy source: Solar; DC

    1. Solar Direct Drive Vaccine Refrigerator & Ice-pack Freezer with F: 42 L | R: 118 L | F: 1.48 cu ft | R: 4.17 cu ft gross volume.
    2. Set Temperature: +5°C (R) | -25°C (F)
    3. Vaccine storage capacity: 99 L
    4. Ice-pack storage (at 0.6 L): 14.4 kg
    5. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/035
    6. Freeze protection: Grade A
    7. Climate class (ambient temperature range): Temperate zone (+32°C)
    8. Energy source: Solar; DC

    1. Solar Direct Drive Vaccine Refrigerator with 278 L gross volume.
    2. Set Temperature: +5°C
    3. Vaccine storage capacity: 156 L
    4. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/030
    5. Freeze protection: Grade A
    6. Climate class (ambient temperature range): Temperate zone (+32°C)
    7. Energy source: Solar; DC

    1. Solar Direct Drive Vaccine Refrigerator with 249 L gross volume.
    2. Set Temperature: +5°C
    3. Vaccine storage capacity: 220 L
    4. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/093
    5. Freeze protection: Grade A
    6. Climate class (ambient temperature range): Hot zone (+43°C)
    7. Energy source: Solar; DC

    1. Solar Direct Drive Icepack Freezer with 64 L | 2.26 cu ft gross volume.
    2. Set Temperature: -5°C
    3. Ice-pack storage (at 0.6 L): 20
    4. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/073
    5. Climate class (ambient temperature range): Hot zone (+43°C)
    6. Energy source: Solar; DC

    1. Solar Direct Drive Vaccine Refrigerator with 24.5 L gross volume.
    2. Set Temperature: +5°C
    3. Vaccine storage capacity: 16 L
    4. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/090
    5. Freeze protection: Grade A
    6. Climate class (ambient temperature range): Hot zone (+43°C)
    7. Energy source: Solar; DC

    1. Solar Direct Drive Vaccine Refrigerator with 24.5 L gross volume.
    2. Set Temperature: +5°C
    3. Vaccine storage capacity: 16 L
    4. Certifications: EMC directive 2014/30/EU | EU MDD Class I | Low voltage 2014/35/EU | WHO PQS E003/090
    5. Freeze protection: Grade A
    6. Climate class (ambient temperature range): Hot zone (+43°C)
    7. Energy source: Solar; DC

Resistance To Harsh Environment

  1. Designed to operate in tropical conditions (32°C to 43°C depending on the model)
  2. Rotomoulded body construction: rust free and extremely robust
  3. Humidity control: no condensation issues in the fridge
  4. Best-in-class warranty: 10 years of international manufacturer’s warranty, and lifetime warranty against corrosion

Ergonomic Design

  1. Door gaskets are easily replaceable and washable
  2. “Plug and play” installation of the solar generators
  3. No battery, no regulator: easy maintenance and no hidden costs
  4. External temperature display and real-time visualization on the web

Safety And Traceability

  1. Strong insulation: extended holdover time in the event of minimal or no sunlight
  2. Silicone gaskets and lockable clasps: tight closing and restricted access
  3. Audio-visual alarm system with remote transmission

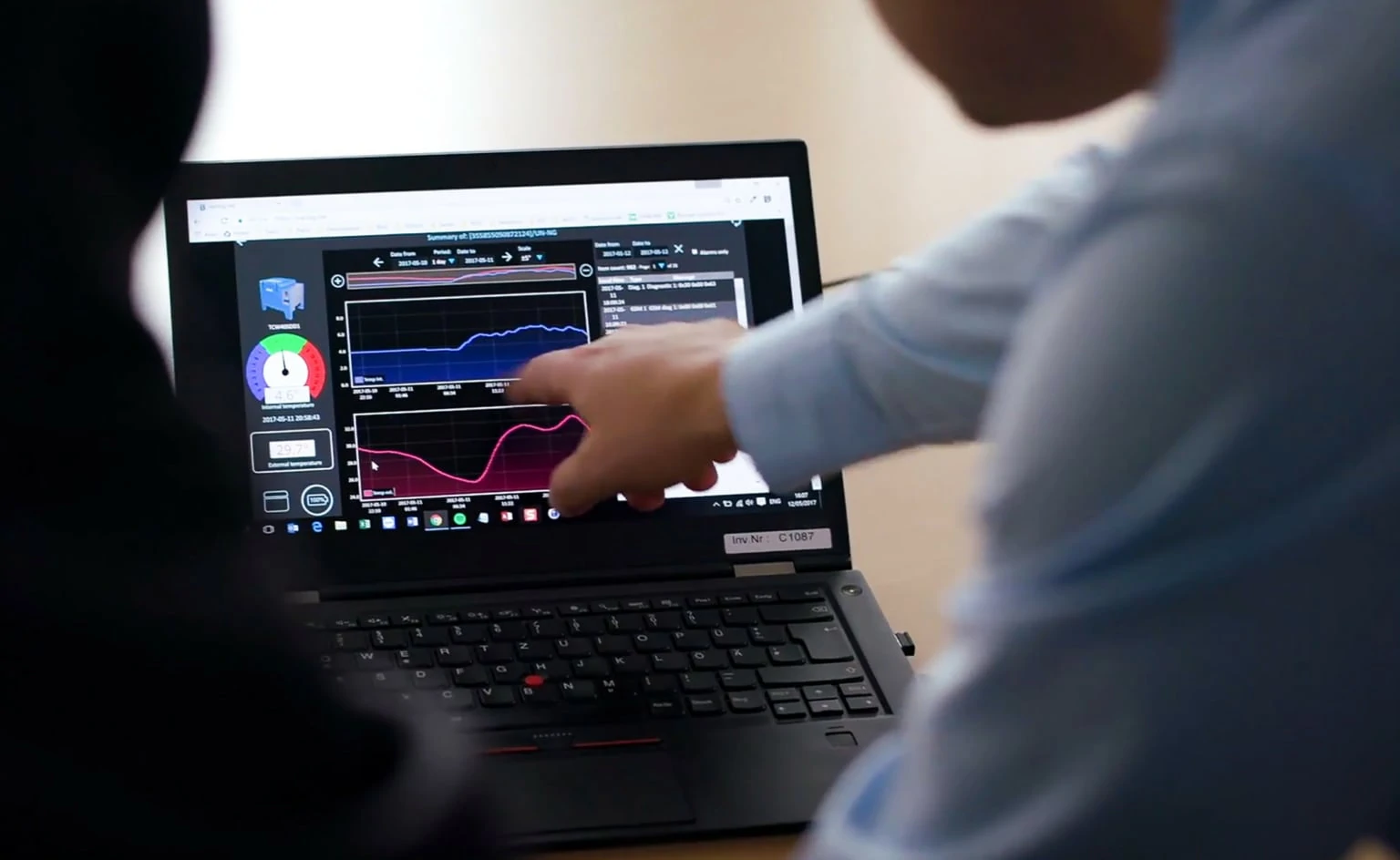

  4. Remote temperature monitoring solution, comprising a data logger and a digital platform
